میکرومتر داخل سه فک سری 3227 برند اینسایز
میکرومتر فوق میکرومتر داخل سنج سه فک ساده سری 3227 برند اینسایز (INSIZE) میباشد، میکرومتر فوق DIN863-4 دارای مهره انتهایی ورنیه (جغجغه ای) است.
میکرومتر داخل سنج سه فک سری 3227 برند اینسایز (INSIZE)
میکرومتر فوق میکرومتر داخل سنج سه فک ساده سری 3227 برند اینسایز (INSIZE) میباشد، میکرومتر فوق DIN863-4 دارای مهره انتهایی ورنیه (جغجغه ای) است.

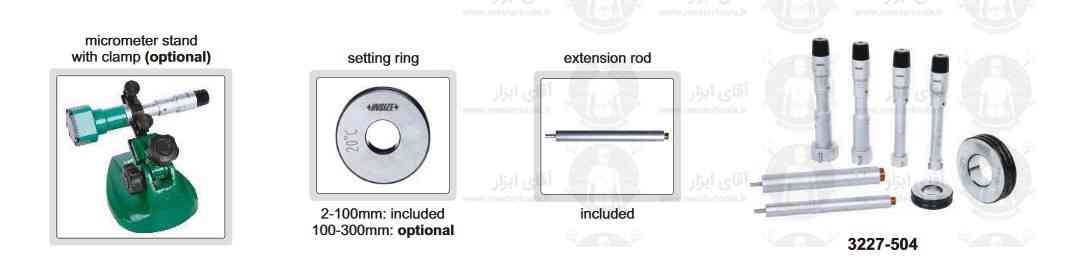

لوازم جانبی اختیاری میکرومتر داخل سنج سه فک
Setting rings (Code 6312)
استند و کلمپ میکرومتر (Micrometer stand and clamp) (code 6301 and 6301-2)
لیست میکرومتر داخل سنج سه فک سری 3227 برند اینسایز (INSIZE)

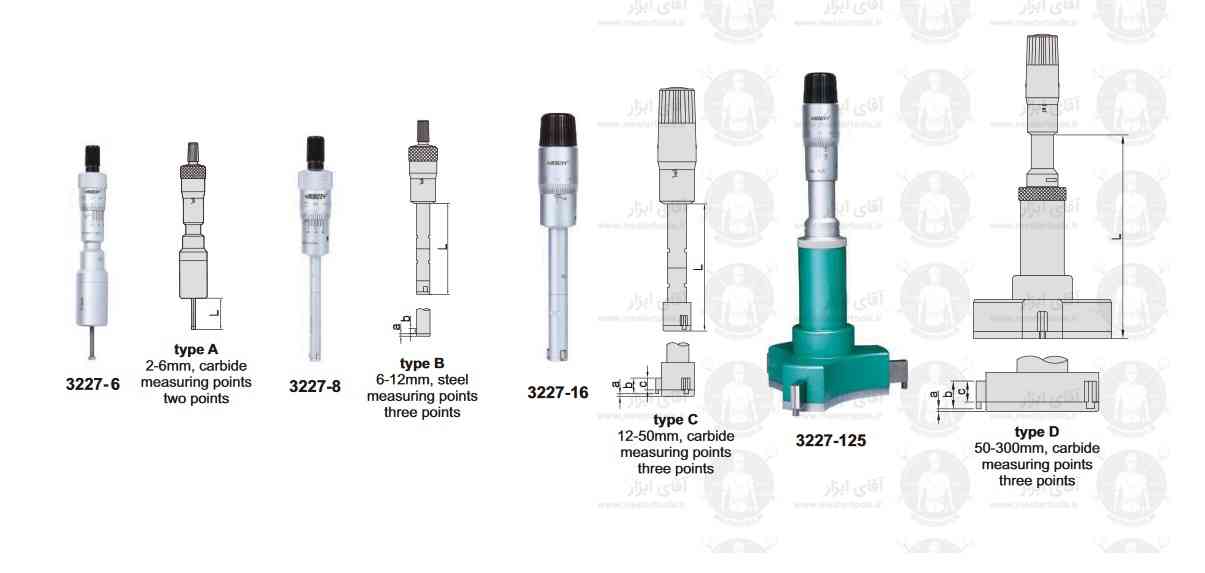

Code | Range | Type | Accuracy | Setting ring | Extension rod (included) | L | a | b | c |
3227-2 | 2-2.5mm | A (two points) | 6μm | ø2.5 (included) | - | 12 | - | - | - |
3227-3 | 2.5-3mm | A (two points) | 6μm | ø2.5 (included) | - | 12 | - | - | - |
3227-4 | 3-4mm | A (two points) | 6μm | ø4 (included) | - | 22 | - | - | - |
3227-5 | 4-5mm | A (two points) | 6μm | ø5 (included) | - | 22 | - | - | - |
3227-6 | 5-6mm | A (two points) | 6μm | ø6 (included) | - | 22 | - | - | - |
3227-8 | 6-8mm | B (three points) | 4μm | ø6 (included) | 100 | 54.5 | 1.5 | 2.5 | - |
3227-10 | 8-10mm | B (three points) | 4μm | ø8 (included) | 100 | 54.5 | 1.5 | 2.5 | - |
3227-12 | 10-12mm | B (three points) | 4μm | ø10 (included) | 100 | 54.5 | 1.5 | 2.5 | - |
3227-16 | 12-16mm | C (three points) | 4μm | ø16 (included) | 150 | 80 | 0.5 | 6 | 4.5 |
3227-20 | 16-20mm | C (three points) | 4μm | ø16 (included) | 150 | 80 | 0.5 | 6 | 4.5 |
3227-25 | 20-25mm | C (three points) | 4μm | ø25 (included) | 150 | 90 | 0.5 | 8 | 6 |
3227-30 | 25-30mm | C (three points) | 4μm | ø25 (included) | 150 | 90 | 0.5 | 8 | 6 |
3227-40 | 30-40mm | C (three points) | 4μm | ø40 (included) | 150 | 97 | 0.5 | 14 | 12 |
3227-50 | 40-50mm | C (three points) | 5μm | ø40 (included) | 150 | 97 | 0.5 | 14 | 12 |
3227-63 | 50-63mm | D (three points) | 5μm | ø62 (included) | 150 | 114 | 0.5 | 17.5 | 14.5 |
3227-75 | 62-75mm | D (three points) | 5μm | ø62 (included) | 150 | 114 | 0.5 | 17.5 | 14.5 |
3227-88 | 75-88mm | D (three points) | 5μm | ø87 (included) | 150 | 114 | 0.5 | 17.5 | 14.5 |
3227-100 | 87-100mm | D (three points) | 5μm | ø87 (included) | 150 | 114 | 0.5 | 17.5 | 14.5 |
3227-125 | 100-125mm | D (three ponts) | 6μm | optional | 150 | 140 | 0.9 | 29 | 25 |
3227-150 | 125-150mm | D (three points) | 6μm | optional | 150 | 140 | 0.9 | 29 | 25 |
3227-175 | 150-175mm | D (three points) | 7μm | optional | 150 | 140 | 0.9 | 29 | 25 |
3227-200 | 175-200mm | D (three points) | 7μm | optional | 150 | 140 | 0.9 | 29 | 25 |
3227-225 | 200-225mm | D (three points) | 8μm | optional | 150 | 140 | 0.9 | 29 | 25 |
3227-250 | 225-250mm | D (three points) | 8μm | optional | 150 | 140 | 0.9 | 29 | 25 |
3227-275 | 250-275mm | D (three points) | 9μm | optional | 150 | 140 | 0.9 | 29 | 25 |
3227-300 | 275-300mm | D (three points) | 9μm | optional | 150 | 140 | 0.9 | 29 | 25 |
ست میکرومتر
Code | Range | Micrometers included | Setting ring (included) | Extension rod (included) |
3227-232 | 2-3mm | 2-2.5mm, 2.5-3mm | ø2.5mm | - |
3227-363 | 3-6mm | 3-4mm, 4-5mm 5-6mm | ø4mm, ø5mm, ø6mm | - |
3227-123 | 6-12mm | 6-8mm, 8-10mm, 10-12mm | ø6mm, ø8mm, ø10mm | 100mm |
3227-202 | 12-20mm | 12-16mm, 16-20mm | ø16mm | 150mm |
3227-504 | 20-50mm | 20-25mm, 25-30mm, 30-40mm, 40-50mm | ø25mm, ø40mm | 150mm |
3227-1004 | 50-100mm | 50-63mm, 62-75mm, 75-88mm, 87-100mm | ø62mm, ø87mm | 150mm |
